ダイヤモンド機械用テーパー・ヤスリ

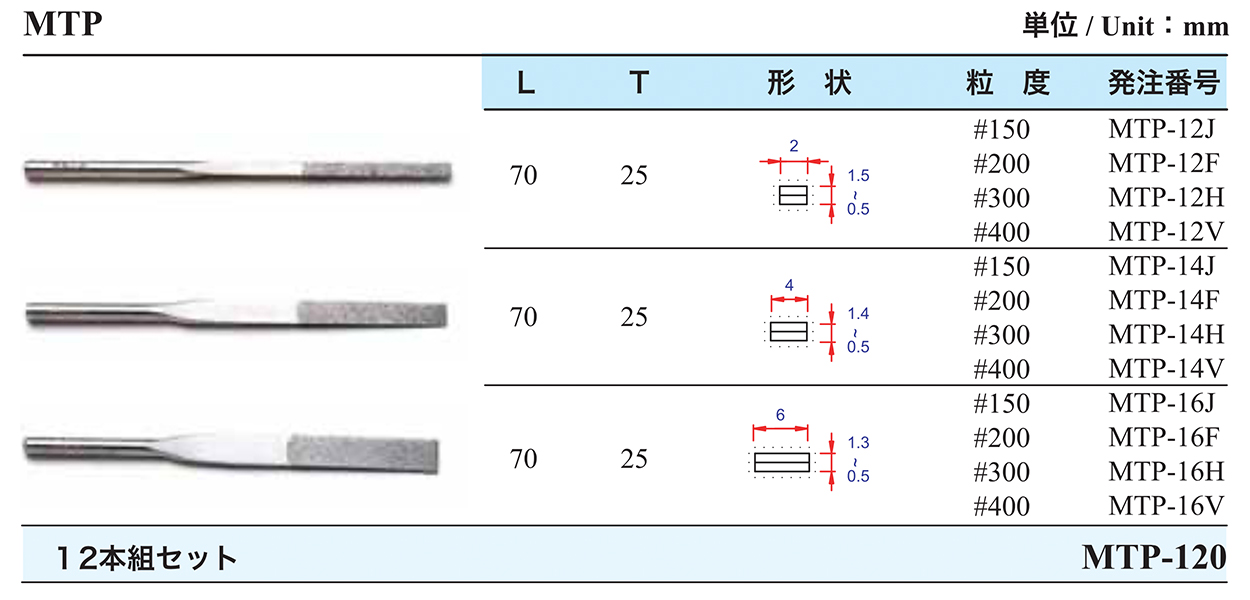

MTP
| 型番 | 粒度 | シャンク径(mm) | 形状サイズ(mm) | ダイヤ部長さ(mm) | 全長(mm) | 単価(税別) | 数量 |
|---|---|---|---|---|---|---|---|
| MTP-12J | #150 | 3 | 2×1.5〜0.5 | 25 | 70 | ¥1,400 税別 | |
| MTP-14J | #150 | 3 | 4×1.4〜0.5 | 25 | 70 | ¥1,400 税別 | |
| MTP-16J | #150 | 3 | 6×1.3〜0.5 | 25 | 70 | ¥1,400 税別 | |
| MTP-12F | #200 | 3 | 2×1.5〜0.5 | 25 | 70 | ¥1,400 税別 | |
| MTP-14F | #200 | 3 | 4×1.4〜0.5 | 25 | 70 | ¥1,400 税別 | |
| MTP-16F | #200 | 3 | 6×1.3〜0.5 | 25 | 70 | ¥1,400 税別 | |
| MTP-12H | #300 | 3 | 2×1.5〜0.5 | 25 | 70 | ¥1,400 税別 | |
| MTP-14H | #300 | 3 | 4×1.4〜0.5 | 25 | 70 | ¥1,400 税別 | |
| MTP-16H | #300 | 3 | 6×1.3〜0.5 | 25 | 70 | ¥1,400 税別 | |
| MTP-12V | #400 | 3 | 2×1.5〜0.5 | 25 | 70 | ¥1,400 税別 | |
| MTP-14V | #400 | 3 | 4×1.4〜0.5 | 25 | 70 | ¥1,400 税別 | |
| MTP-16V | #400 | 3 | 6×1.3〜0.5 | 25 | 70 | ¥1,400 税別 | |
| MTP-120 | 12本組セット | ¥13,000 税別 | |||||

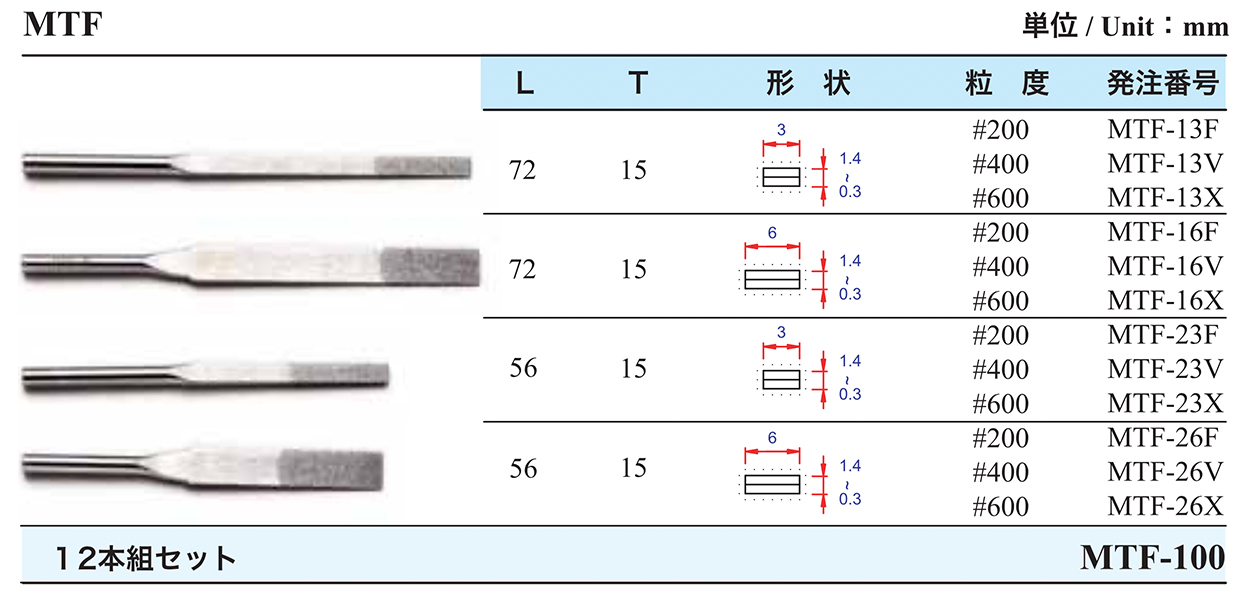

MTF
| 型番 | 粒度 | シャンク径(mm) | 形状サイズ(mm) | ダイヤ部長さ(mm) | 全長(mm) | 単価(税別) | 数量 |
|---|---|---|---|---|---|---|---|
| MTF-13F | #200 | 3 | 3×1.4〜0.3 | 15 | 72 | ¥1,580 税別 | |
| MTF-16F | #200 | 3 | 6×1.4〜0.3 | 15 | 72 | ¥1,580 税別 | |
| MTF-23F | #200 | 3 | 3×1.4〜0.3 | 15 | 56 | ¥1,580 税別 | |
| MTF-26F | #200 | 3 | 6×1.4〜0.3 | 15 | 56 | ¥1,580 税別 | |
| MTF-13V | #400 | 3 | 3×1.4〜0.3 | 15 | 72 | ¥1,580 税別 | |
| MTF-16V | #400 | 3 | 6×1.4〜0.3 | 15 | 72 | ¥1,580 税別 | |
| MTF-23V | #400 | 3 | 3×1.4〜0.3 | 15 | 56 | ¥1,580 税別 | |
| MTF-26V | #400 | 3 | 6×1.4〜0.3 | 15 | 56 | ¥1,580 税別 | |
| MTF-13X | #600 | 3 | 3×1.4〜0.3 | 15 | 72 | ¥1,580 税別 | |
| MTF-16X | #600 | 3 | 6×1.4〜0.3 | 15 | 72 | ¥1,580 税別 | |
| MTF-23X | #600 | 3 | 3×1.4〜0.3 | 15 | 56 | ¥1,580 税別 | |
| MTF-26X | #600 | 3 | 6×1.4〜0.3 | 15 | 56 | ¥1,580 税別 | |
| MTF-100 | 12本組セット | ¥15,200 税別 | |||||
